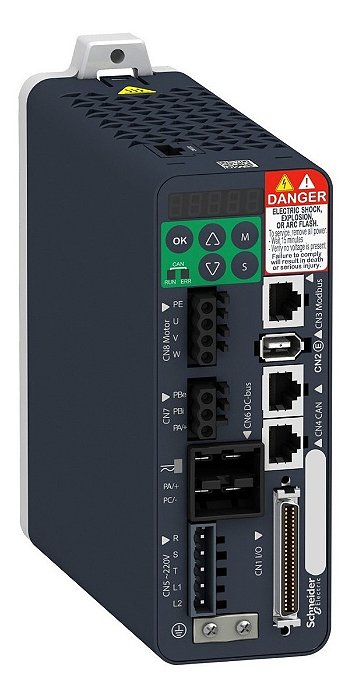

Lxm28au02m3x Servo Drive Lexium 28 230vca / 200w Schneider

Produto Novo Fotos Reais Marca: Schneider Electric Modelo: LXM28AU02M3X SERVO ACIONAMENTO LEXIUM 28, TRIFÁSICO 230VCA, 200W LXM28AU02M3X Primary brand: Schneider Electric Main function: AC servo drive Product series / family name: Lexium 28 series Sub-range name: Servo drives Functions: AC servo drive Design: natural cooling,Pulse Train Output (PTO) Supply voltage (AC): 200Vac-255Vac (220Vac / 230Vac / 240Vac) Frequency: 47.5-63Hz Type of network: Single-phase input (2P), 3-phase input (3P) Rated current: 1.5A Rated active power (kW): 0.2kW / 200W Connection type: Spring-clamp connections, RJ45 connector Protection functions: Reverse polarity protection, Short-circuit protection, Overcurrent protection (motor), Overvoltage protection (motor), Undervoltage protection (motor), Overheating protection (motor), Overload protection (motor), Overspeed protection (motor), Safe Torque OFF (STO) Communication protocol: CANopen Mounting mode: Surface Digital inputs: 8 x digital inputs (24Vdc), 1 x digital input (Pulse train input), 2 x digital inputs (fast capture), 1 x digital input (Safe Torque OFF (STO)) Digital outputs: 5 x digital outputs (12...24Vdc / logic output), 1 x digital output (Pulse Train Output (PTO)) Analog inputs: 2 x analog inputs (-10...+10Vdc / 10k / 14-bits resolution) Analog outputs: 2 x analog outputs (-8...+8Vdc / 10mA / 1k / 12-bits resolution) Degree of protection: IP20 Ambient air temperature for operation: 0...+55 °C Ambient air temperature for storage: -25...+65 °C Compliant with standard(s): CE, CSA, CULus, EN 61800-5-2, EN 61508-1, ISO 13849-1, EN 60204-1, EN 62061 Class: SIL2, PLd Benefits: Automatic tuning and motor identification PLC open motion library Designed for optimized & cost effective solutions Drive embedded safety function; Safe-Torque-Off Energy efficient because of DC-bus sharing Predefined servo bundles to fit each machine type Cost effective Energy efficient Embedded safety Utilize o campo de perguntas para esclarecer quaisquer dúvidas antes de efetuar sua compra. Produto em Estoque Envio imediato. Cód. Interno: 0399-B2-0002 Garantia do vendedor: 3 meses
